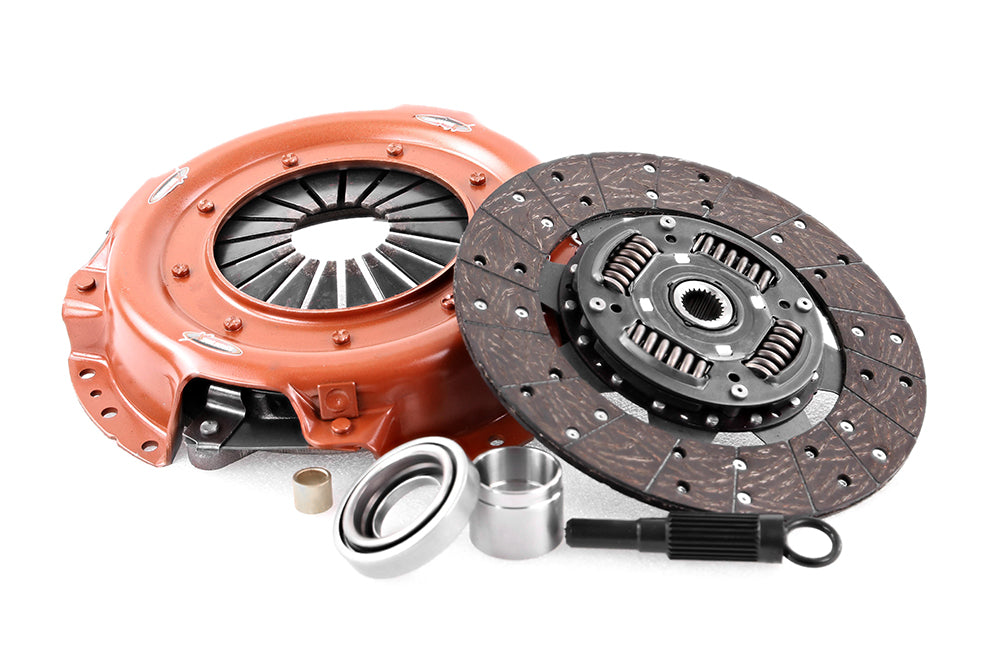

Kit Ambreiaj Xtreme Outback Extra Heavy Duty 560Nm Nissan Patrol

Recommended for: Vehicles with significant performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

The Extra Heavy Duty range of upgrades from Xtreme Outback are designed to offer the highest levels of performance for heavily modified street and off-road vehicles. These kits offer a significant increase in clamping force (30-60% above the factory clutch) over the Heavy Duty equivalents and are designed specifically for vehicles that have had significant aftermarketing tuning and performance upgrades

• Torque capacity 560Nm

• Clamp load 1100Kg 40% Increased over standard
• Organic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again. Each kit is carefully developed in-house at Xtreme Outback and tested extensively around the world.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Specificații tehnice

Torque (Nm)	560
Clamp Load	1100kg (40% inc)
Flywheel Step	0
Clutch Disc Diameter (mm)	275
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25,4
Recommended for	Street Performance, Heavily Loaded or Tow Vehicles
Design	Single Plate
Tech Bulletins	TSB-165
Tech Bulletins	TSB-NI04

Greutate: 13.57 kg

Aplicații — vehicule compatibile

Marcă	Model	Variantă	An de	An până	Motor	Note
Nissan	Patrol	G160 | 3.3 TD 4WD	1984.01	1987.12	SD33T 3246 Diesel 81 kW 110 BHP (1984.01 - 1987.12)
Nissan	Patrol	G160 | 4.0 4WD	1980.06	1987.12	P40 3956 Petrol 108 kW 147 BHP (1980.06 - 1987.12)
Nissan	Patrol	G160 | 4.2 4WD	1980.06	1985.12	TB42 4169 Petrol 85 kW 116 BHP (1980.06 - 1985.12)
Nissan	Patrol	G60 | 4.0 4WD	1976.01	1980.12	P40 3956 Petrol 108 kW 147 BHP (1976.01 - 1980.12)
Nissan	Patrol	G61 | 4.0 4WD	1976.01	1980.12	P40 3956 Petrol 108 kW 147 BHP (1976.01 - 1980.12)
Nissan	Patrol	K160 | 3.3 TD	1983.07	1988.08	SD33T 3246 Diesel 81 kW 110 BHP (1983.07 - 1988.08)
Nissan	Patrol	K260 | 4.2	1992.02	1997.12	TB42E 4169 Petrol 129 kW 175 BHP (1992.02 - 1997.12)
Nissan	Patrol	K260 | 4.2	1988.01	1995.12	TB42E 4169 Petrol 125 kW 170 BHP (1988.01 - 1995.12)
Nissan	Patrol	K260 | 4.2 D	1988.01	1997.12	TD42 4169 Diesel 85 kW 116 BHP (1988.01 - 1997.12)
Nissan	Patrol	W160 | 3.3 TD	1983.07	1988.08	SD33T 3246 Diesel 81 kW 110 BHP (1983.07 - 1988.08)
Nissan	Patrol	W160 | 4.0	1980.06	1988.01	P40 3956 Petrol 108 kW 147 BHP (1980.06 - 1988.01)
Nissan	Patrol	Y60 | 4.2 Cat	1988.11	1998.02	TB42E 4169 Petrol 121 kW 165 BHP (1988.11 - 1998.02)
Nissan	Patrol	Y60 | 4.2 D	1988.11	2000.09	TD42 4169 Diesel 85 kW 116 BHP (1988.11 - 2000.09)
Nissan	Patrol	Y60 | 4.2 D 4WD	1992.07	1994.05	TD42 4169 Diesel 92 kW 125 BHP (1992.07 - 1994.05)
Nissan	Patrol	Y60 | 4.2 D 4WD	1988.11	1997.06	TD42 4169 Diesel 85 kW 116 BHP (1988.11 - 1997.06)
Nissan	Patrol	Y60 | 4.2 Efi 4WD	1988.02	1995.12	TB42E 4169 Petrol 129 kW 175 BHP (1988.02 - 1995.12)

SKU: KNI28001-1AX
