Kit Ambreiaj Xtreme Outback Heavy Duty Ceramic 670Nm Nissan Patrol / Terrano

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 670Nm
• Clamp load 1100Kg 40% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate

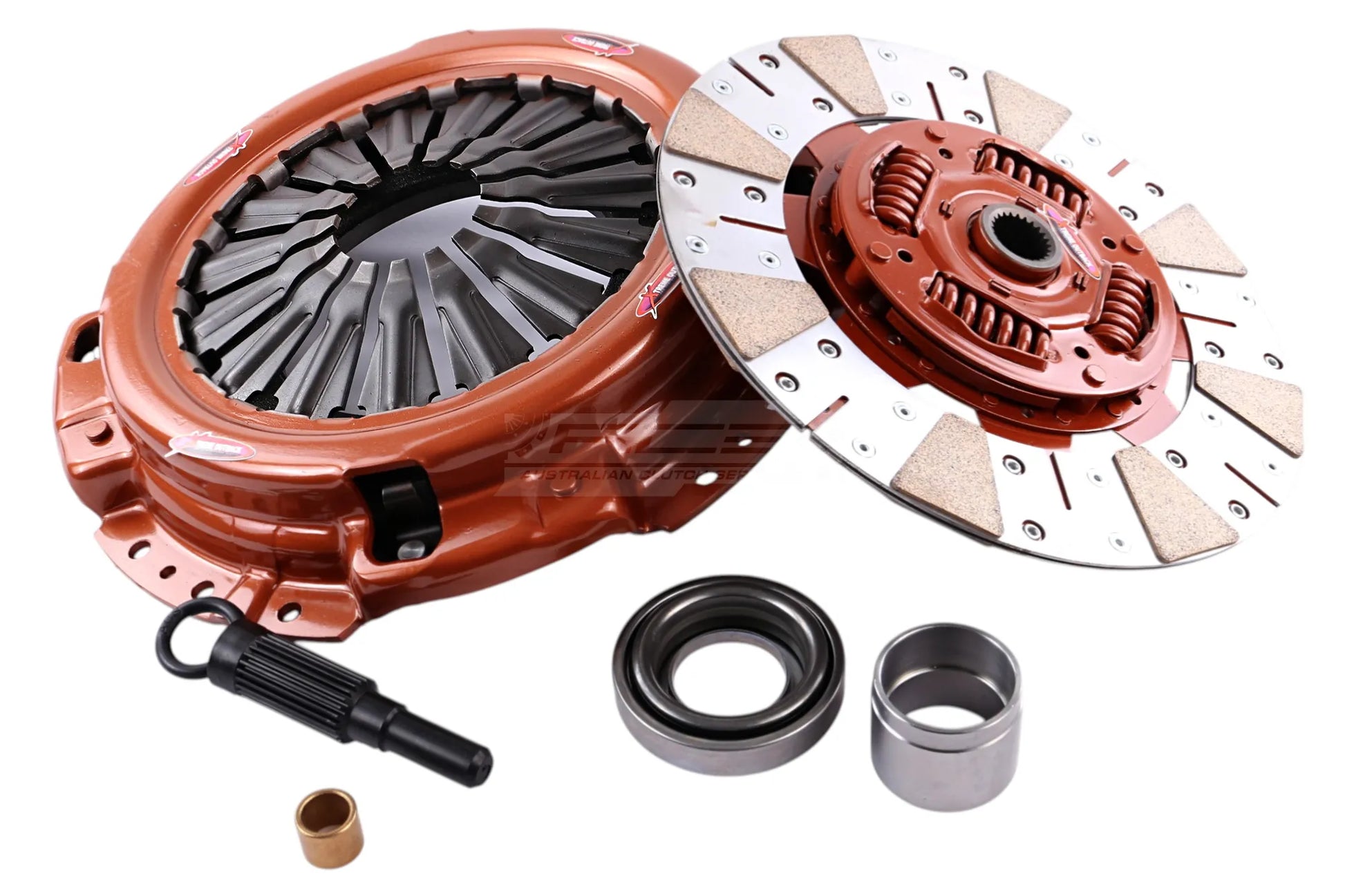

• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Cushioned ceramic friction discs are similar to the sprung ceramic kits in that they have a sprung hub to absorb shock loading, but also have a small amount of cushioning betwene the two friction surfaces on the disc giving them better pedal modulation. These kits are designed for low speed trial where pedal feel is important but where the high temperature capacity of a ceramic disc is also beneficial.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Specificații tehnice

Torque (Nm)	670
Clamp Load	1100Kg (40% inc.)
Flywheel Step	0
Clutch Disc Diameter (mm)	275
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25,4
Recommended for	Low Speed Trial - Stage 2
Design	Single Plate
Stage	Stage 2

Greutate: 14.07 kg

Aplicații — vehicule compatibile

Marcă	Model	Variantă	An de	An până	Motor	Note
Nissan	Patrol	Y61 | 3.0 DTi	2000.05	prezent	ZD30DDTi 2953 Diesel 118 kW 160 BHP (2000.05 - )	Suits vehicles manufactured until 07/2004.
Nissan	Patrol	Y61 | 3.0 DTi	2000.05	prezent	ZD30DDTi 2953 Diesel 116 kW 158 BHP (2000.05 - )	Suits vehicles manufactured until 07/2004.
Nissan	Terrano	R20 | 3.0 DiTD 4WD	1997.10	2004.12	ZD30DDTi 2953 Diesel 125 kW 170 BHP (1997.10 - 2004.12)	Suits vehicles manufactured until 07/2004.

SKU: KNI28006-1C
